Philips Z17T519 17" Portable TV


This Philips 17 inch b/w set is another later variant of the F2ZN series it has the same chassis as the Philips Z19T532. A nice looking set and made in the the later 1960's. I got this back in 2002 and it does work but has vertical issues, last time I tried it the mains suppression capacitor started smoking so it was turned off rather quickly. Since then it hasn't been switched on since. This is also on the project list to do sometime.

Rear

Back cover removed

Chassis hinged down

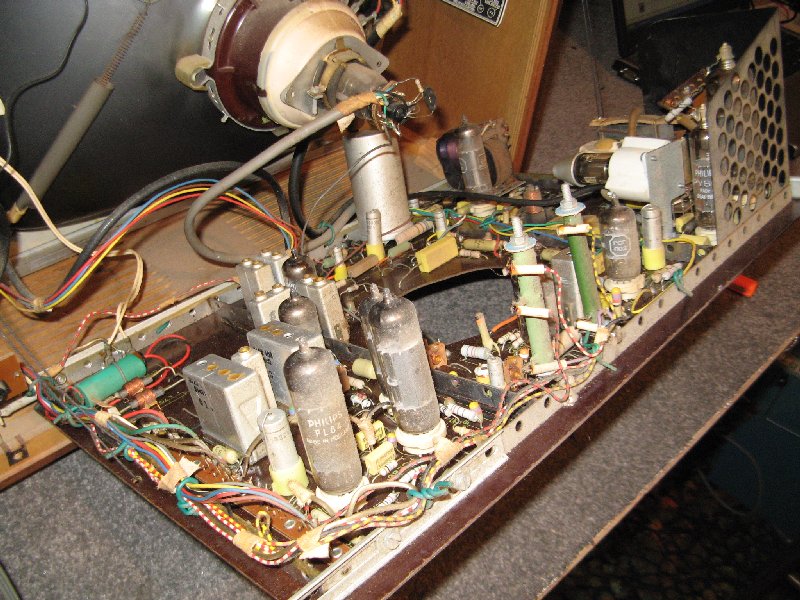

Chassis view

Chassis

Line output section

Control panel/speaker/tuner

Valve location chart
